Gantry & Semi-Gantry Cranes

The lifting capacity of Clescrane gantry crane can be up to 320ton. It is applied for storage yard and warehouse without bracket on the column including semi-gantry crane and gantry crane. Based on the professional crane knowledge in decades and the latest technology, Clescrane will greatly improve your production safety and production efficiency.

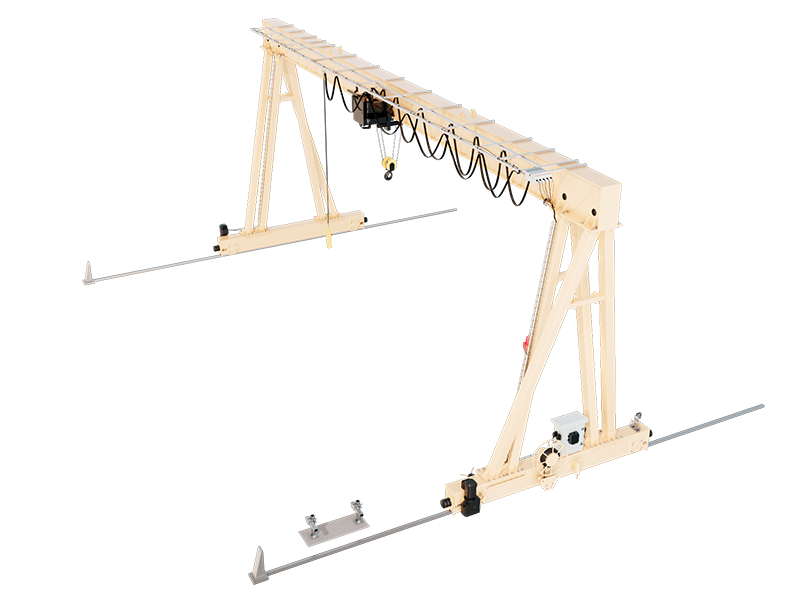

CHG(S) Series Single Girder Gantry Crane

Lifting Capacity: 1~20t
Span: 5m~35m
Working Class: A5,A6
CHG (S) series single girder gantry crane: lifting capacity can be up to 20 tons, crane span and lifting height can be customized according to actual requirements.
Note: Most of the gantry cranes are customized products, please contact Clescrane to get the most economical and reasonable solution for you.

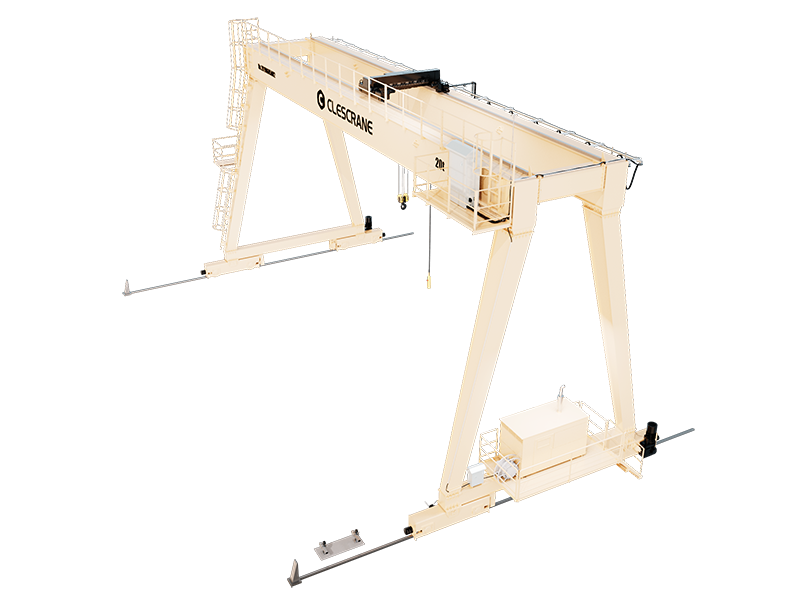

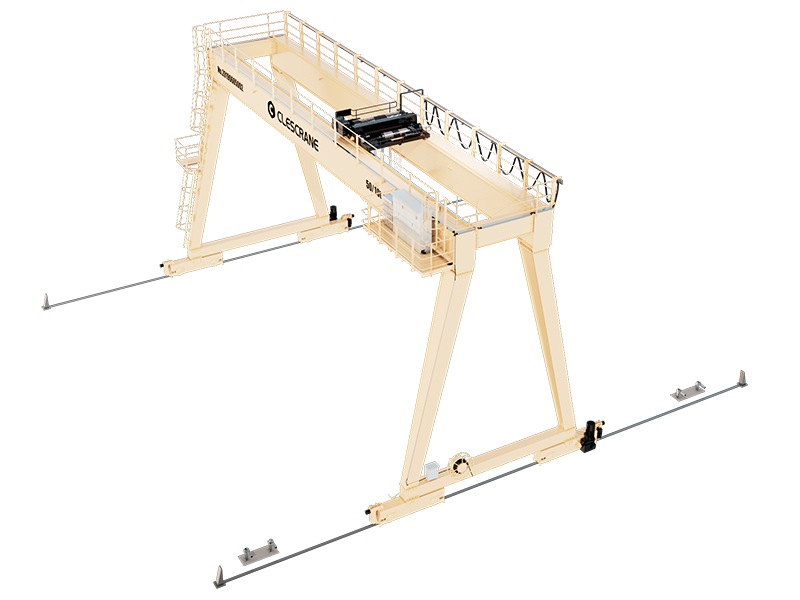

CHG(D) Series Double Girder Gantry Crane

Lifting Capacity: 1~100t
Span: 5m~35m
Working Class: A5,A6
CHG(D) series double girder gantry crane: lifting capacity can be up to 100 tons, crane span and lifting height can be customized according to actual requirements.
Note: Most of the gantry cranes are customized products, please contact Clescrane to get the most economical and reasonable solution for you.

CWG Series Gantry Crane with Open Winch

Lifting Capacity: 5~320t
Span: can be customized based on working sites
Working Class: A3, A4, A5, A6, A7, A8
CWG series gantry cranes are designed for complicated applications, especially for large volume lifting. It is suitable for heavy duty work, and is ideal for harsh working conditions.
Note: Most of the gantry cranes are customized products, please contact Clescrane to get the most economical and reasonable solution for you.

CH(W)B Series Semi-Gantry Crane

Lifting Capacity: 1~100t
Span: 5~25m
Working Class: A3, A4, A5, A6
CH(W)B Series Semi-gantry crane includes single girder and double girder type. It can be used both indoors and outdoors.
Note: Most of the gantry cranes are customized products, please contact Clescrane to get the most economical and reasonable solution for you.

LRG Series Lightweight Mobile Gantry Crane

Lifting Capacity: 0.25~2t
Overall Width: 4m~7.9m
Overall Height: ≤5m
Hoisting: Clescrane CCH series electric chain hoist
Optional: Electric trolley travelling
Classification: according to DIN 15018, H2 B2
If one crane will not be fixed permanently and it often changes the working places, LRG series mobile gantry crane will be the most economical solution.
