CHX Series Suspension Crane

Lifting Capacity: 0.5~20t
(Including single girder CHXS and double girder CHXD suspension cranes)
Span: 3m~16m(longer span can be designed and manufactured)
Working Class: A5,A6
Supplied with CH series wire rope elecric hoist or CCH series chain electric hoist
Clescrane suspension cranes leave your entire workshop area available for production. The cranes are simply attached to the existing roof structure – columns to support the crane runway are not needed. This design saves time and costs. Alternatively, the installation of stand-alone steel superstructures also enables the solution to be adapted to changed production requirements.

Overview

Clescrane suspension cranes leave your entire workshop area available for production. The cranes are simply attached to the existing roof structure – columns to support the crane runway are not needed. This design saves time and costs. Alternatively, the installation of stand-alone steel superstructures also enables the solution to be adapted to changed production requirements.

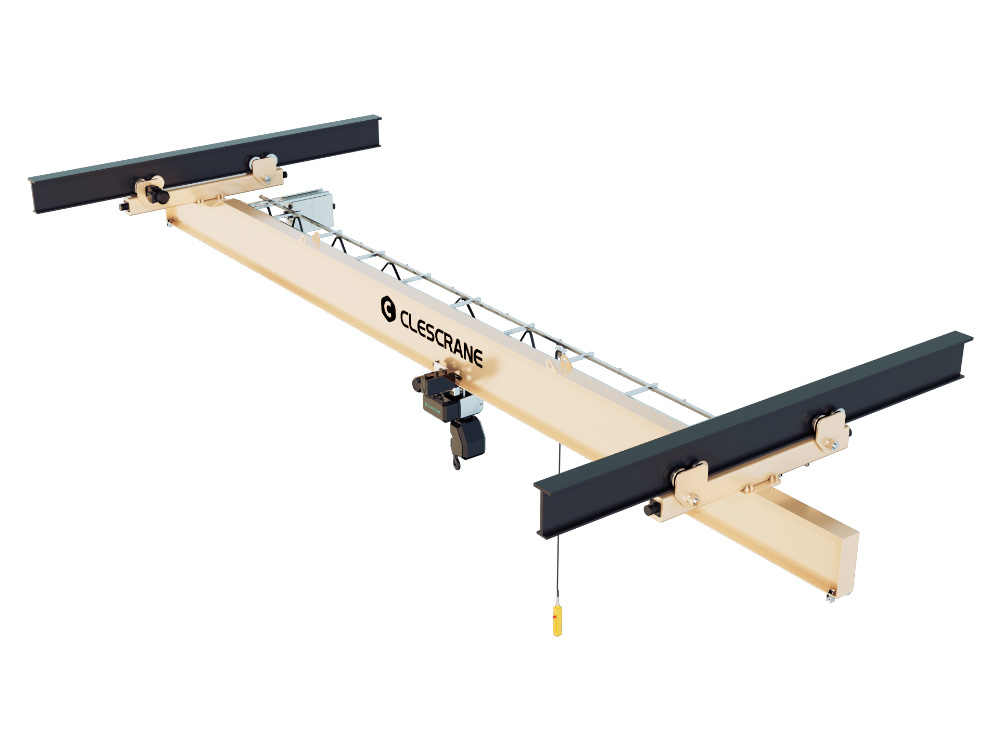

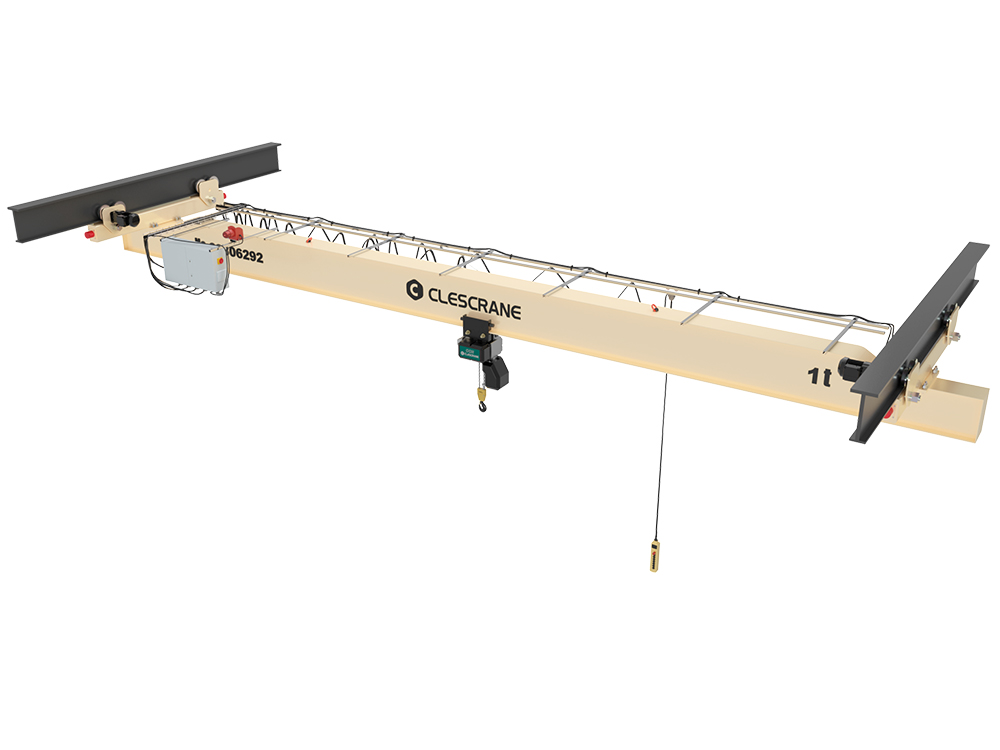

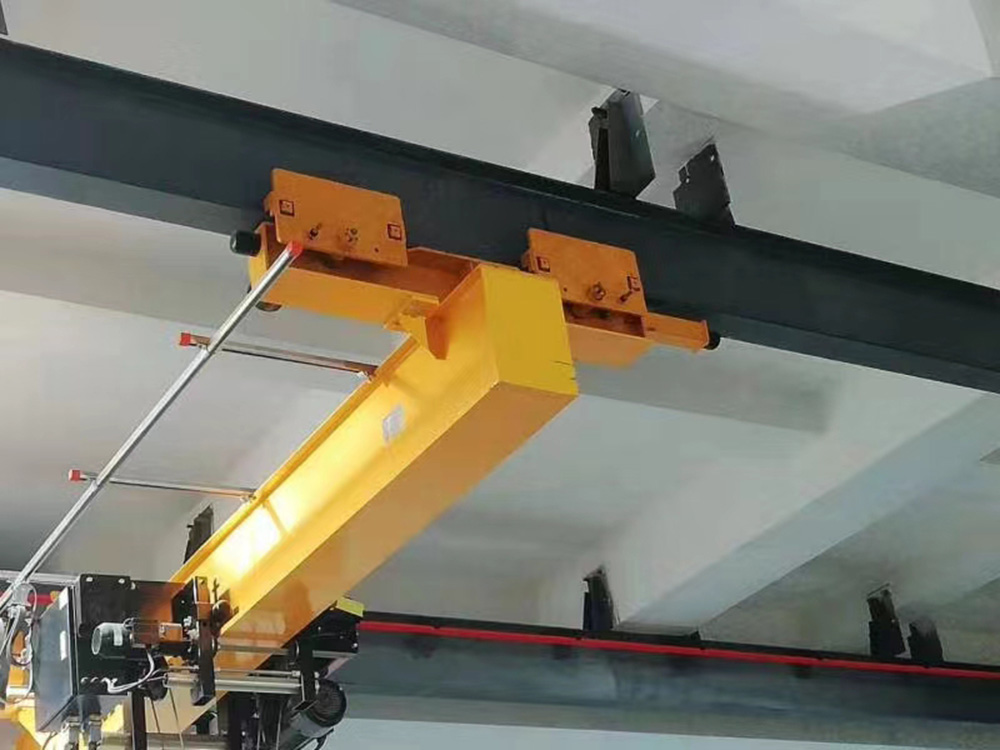

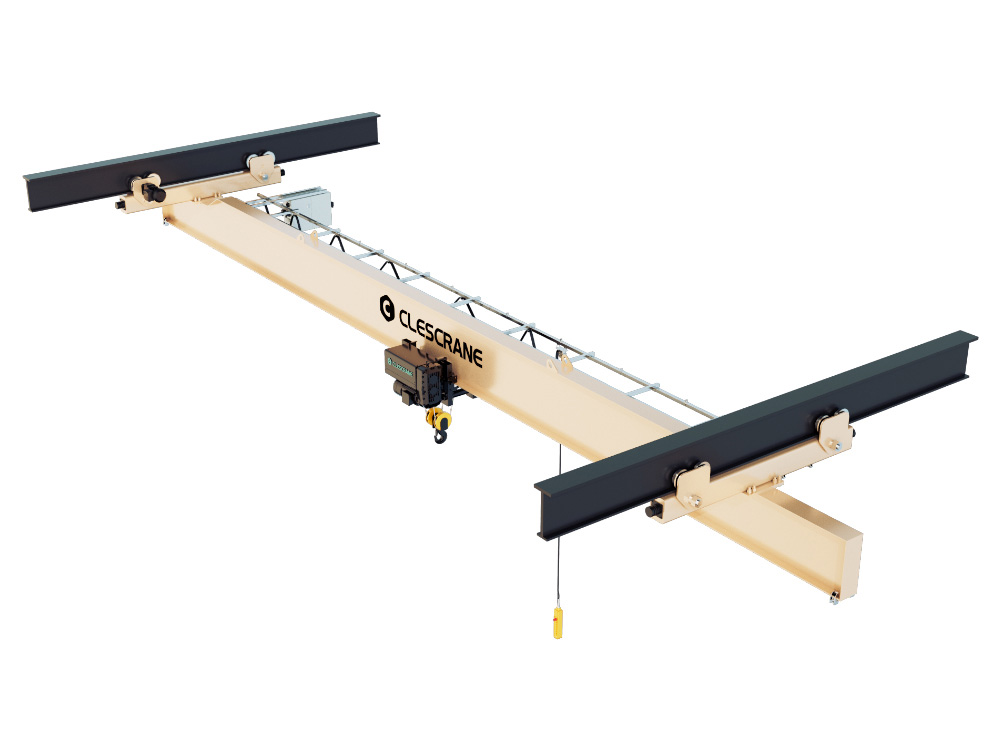

CHXS series single girder suspension crane can be directly mounted under the existing roof structure.The rail adopts I beam and support rail beam no need to be installed. It helps you to make reasonable use of the existing plant.

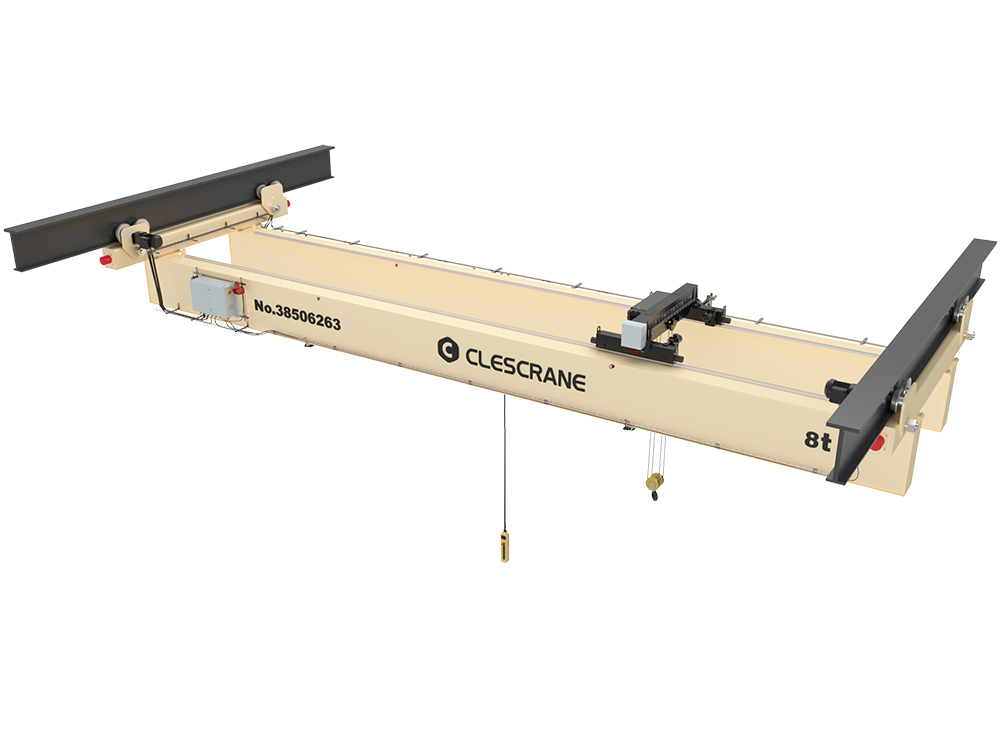

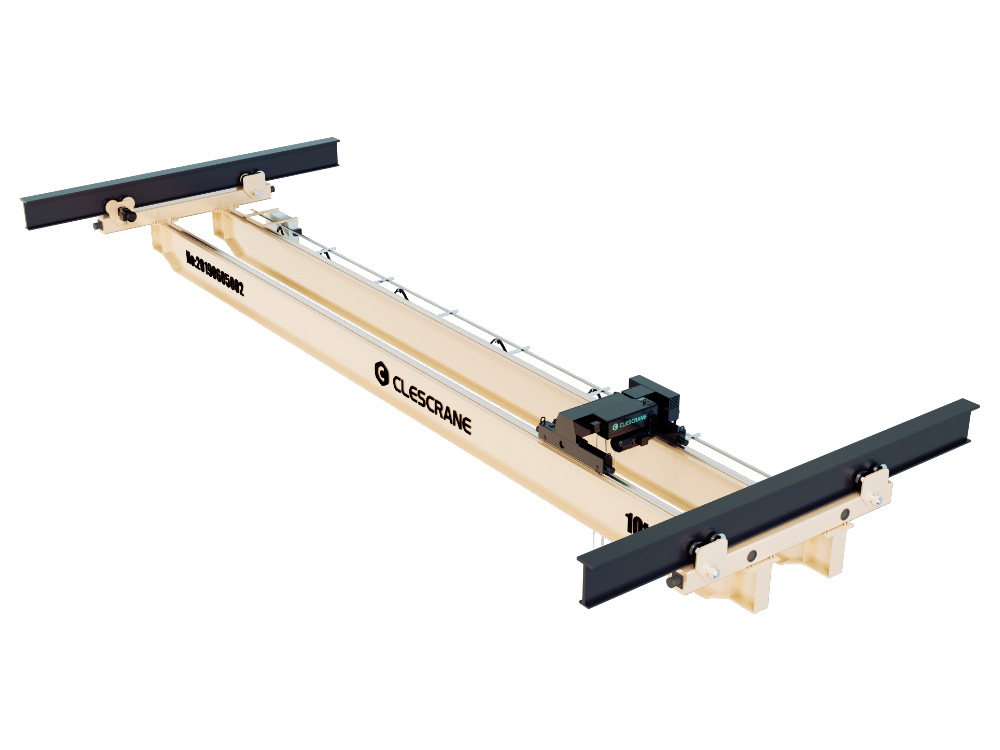

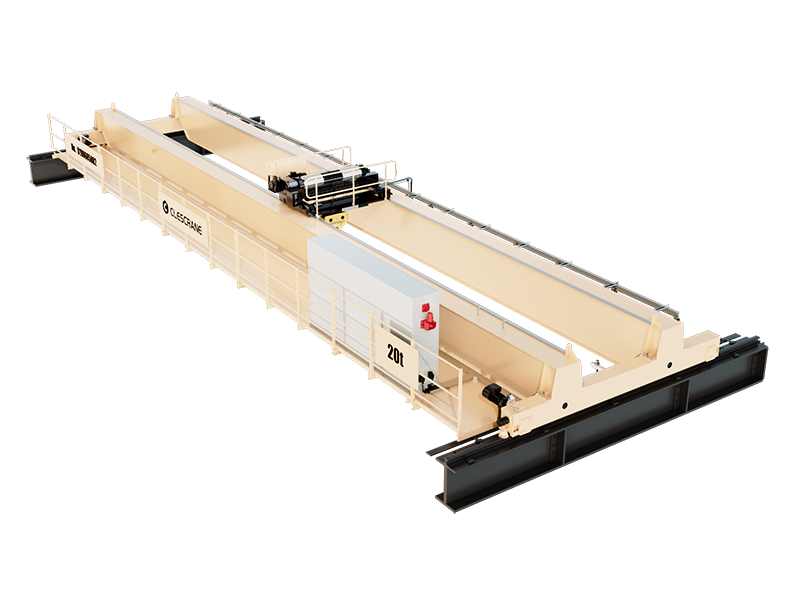

CHXD series double girder suspension crane is usually divided into two types, the first type crane is equipped with hanged I beam rails and the hoist is travelling on the rails on top of upper cover plate of the main girder or hanged on the lower web plates of the two girders. The second type is cranes travel on support rail beam of plant, the hoist is suspendedontwo girders’ webplates. Our design engineers will customize two types of structurefor you according to your plant structure, which will greatly facilitate you to make use of existing plants or new plants reasonably.

You can contact us  ( [email protected] ) if you have questions or need help along the way.
