Waste Renewable Energy and Biomass Industries

Taking advantages of rich industrial experiences and professional crane technology, Clescrane provides material handling solutions for garbage disposal and recovery. Clescrane provides a series of cranes for renewable energy sources industry. According to your needs, we can provide full customization, such as manual control crane, semi-auto crane and full-auto crane. We will help you to get the best crane solution, and effectively increase the safety and productivity of each area in the factory.

CWD Automatic Waste Handing Cranes

Max. Load: 10 ton
Span: 7.5m~25.5m
Working Class: A7,A8
Automatic waste handling cranes are dedicated cranes using in waste incineration power plant. The first intelligent identification technology in this industry based on customers’ needs; selecting the appropriate automatic level of crane with manual, semi-automatic, fully automatic three control mode for free switch.

CWD Slag Handling Cranes

Max. Load:10 ton
Span: 7.5m~10.5m
Working Class: A7,A8
Slag Cranes use double-bladed grabs to transport the ash from the ash bunker to the open containers or to the dump truck. 24-hour fully automatic operation is possible.

CWD Sludge Handling Cranes

Max. Load: 16 ton
Span: 7.5m~16.5m
Working Class: A7,A8
In the sludge station where the waste is burned, semi-fluid sludge is unloaded by trucks into storage bunkers. In the bunker, the sludge handling crane transfers the sludge into a storage area. From the storage area, the crane feeds the sludge to a process line.

A-CWD Strawbale Handling Cranes

Max. Load: 20 ton
Span: 15m~31.5m
Working Class: A7,A8
Strawbale handling crane is a specially developed for the straw power plant material handling cranes, Strawbale handling cranes are used to unload, storage and feed work straw bales from trucks. Highly working level, it adapts to the working environment with high humidity and dusty, frequently using and uninterrupted working in the warehouse of power plant.

CWD Overhead Crane with Open Winch

Max. Load: 320 ton
Span: 7.5m~35.5m ( longer span can be designed and manufactured )
Working Class: A3, A4, A5, A6, A7, A8
CWD series overhead crane is specially designed for multifarious applications, especially when customers want to lift a mass of material, suitable for assembly and maintenance heavy duty work. It is ideal choice for harsh working conditions.
We can provide you with various optional functions according to the special lifting needs in your industry, such as electronic anti-sway, remote monitoring, lifting synchronization and other functions. These are just a part of them.

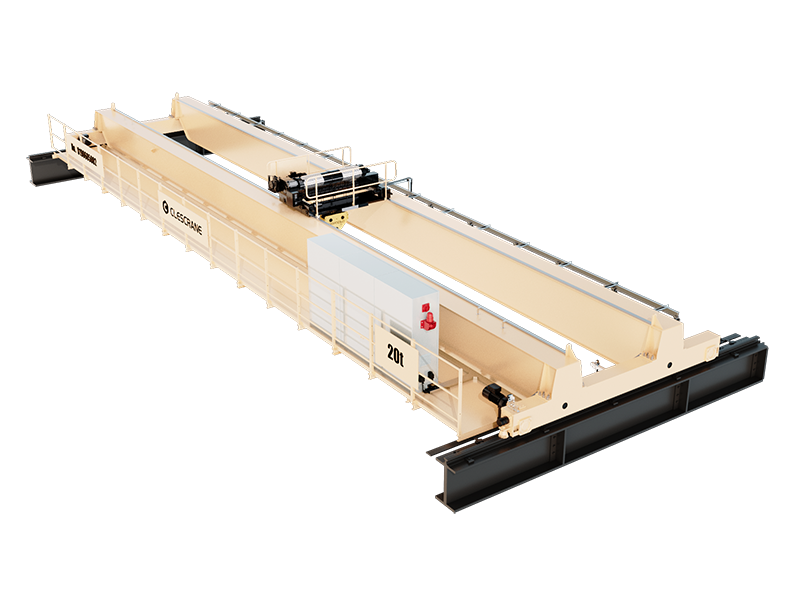

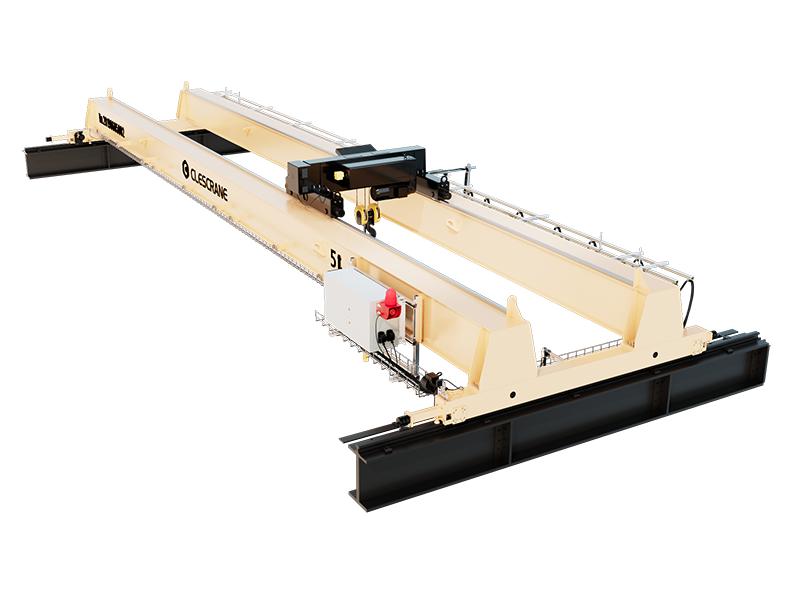

CHD Double Girder Overhead Crane

Max. Load: 100 ton
Span: 7.5m~35.5m
Working Class: A5,A6 ( ≥32t lifting mechanism with inverter control )
CHD series overhead crane is an ideal choice for industrial applications and is very popular in the market. We can provide you multiple optional functions according to your special requirements, such as auxiliary brake, different lifting speeds, load display, wireless remote control, maintenance platform, rain cover and electronic anti-swing, etc. Here, we list just a few of them.

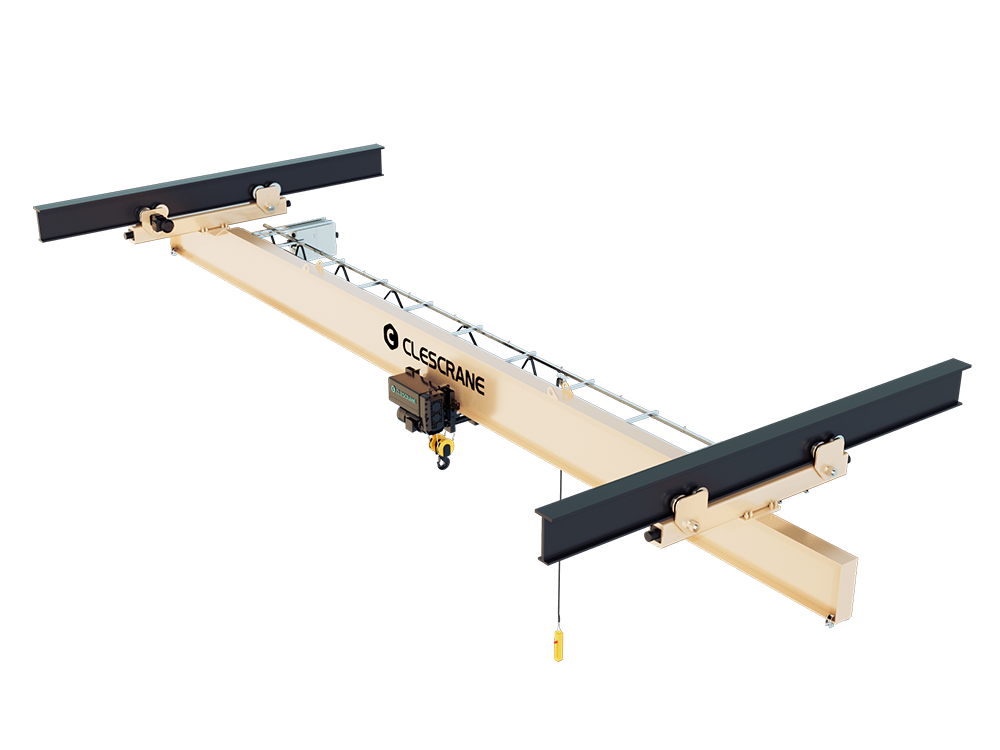

CHS Single Girder Overhead Crane

Max. Load: 20 ton
Span: 7.5m~35m ( span ≥ 25.5m, CHD double girder series is recommended. )
Working Class: A5,A6
CHS series overhead crane is an ideal choice for industrial applications and is very popular in the market. It has feature of light weight and small wheel pressure, which can help you to efficiently make use of available space and save the cost of plant investment. We will provide you different type of electric hoists to meet different site demands.

CHU Suspension Crane

Max. Load: 10 ton
(Including single girder CHXS and double girder CHXD suspension cranes)
Span: 3m~16m(longer span can be designed and manufactured)
Working Class: A5,A6
CHX series suspension cranes use CH series wire rope hoist or CCH series chain hoist. You can choose different optional functions based on specific requirements.(Please check the introduction to CH and CCH series hoists for the options of lifting mechanism). We will help you to confirm best lifting solution.
