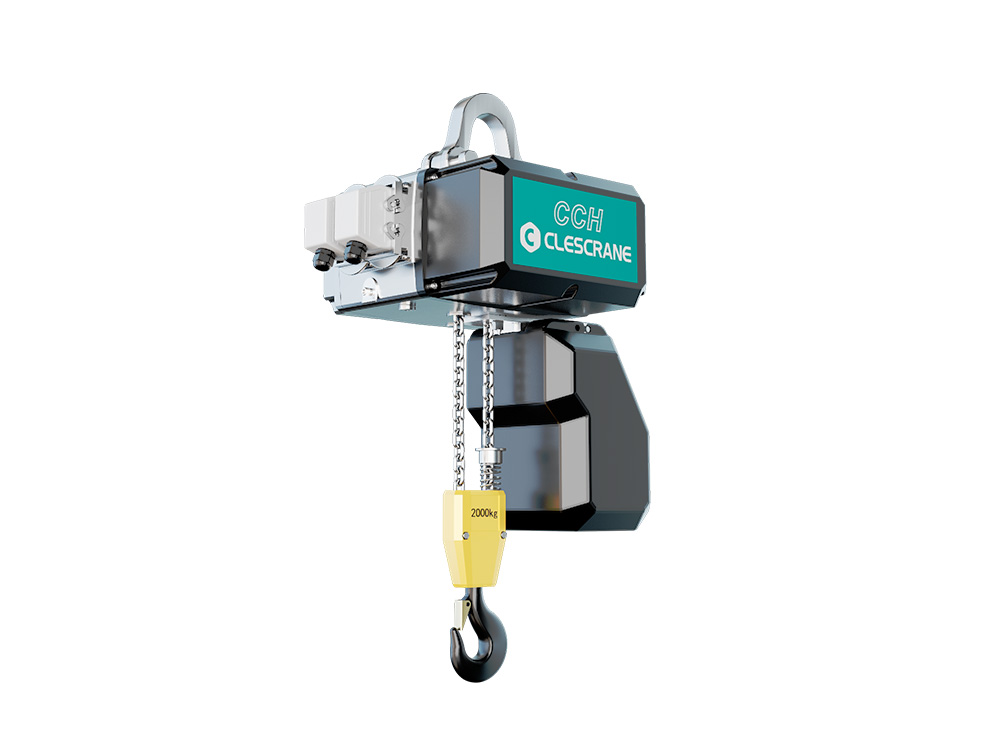

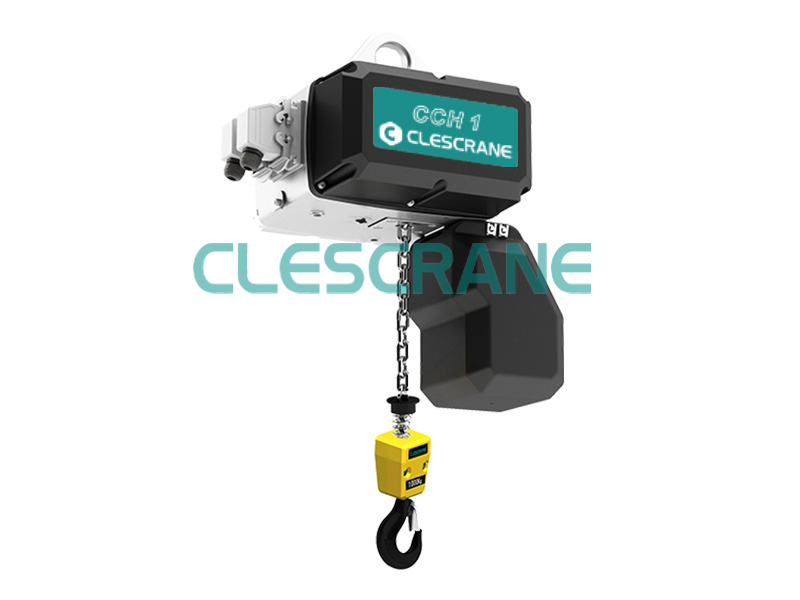

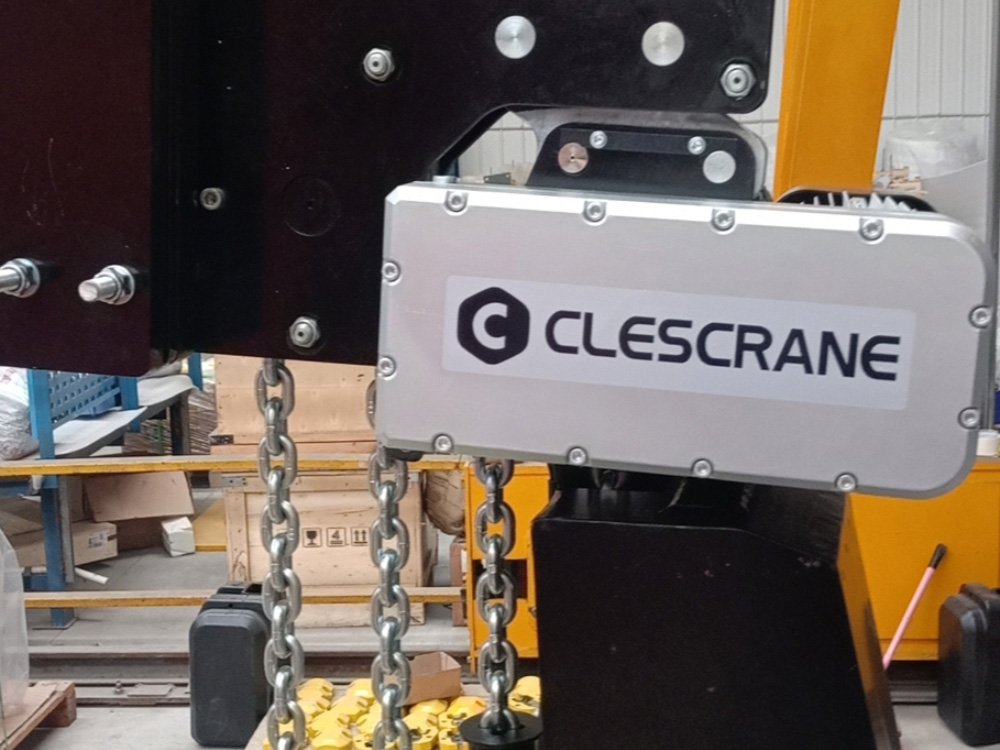

CCH Series Chain Electric Hoist

Lifting capacity: 250kg ~10 000kg
Working class: 1Bm,1Am,2m,3m

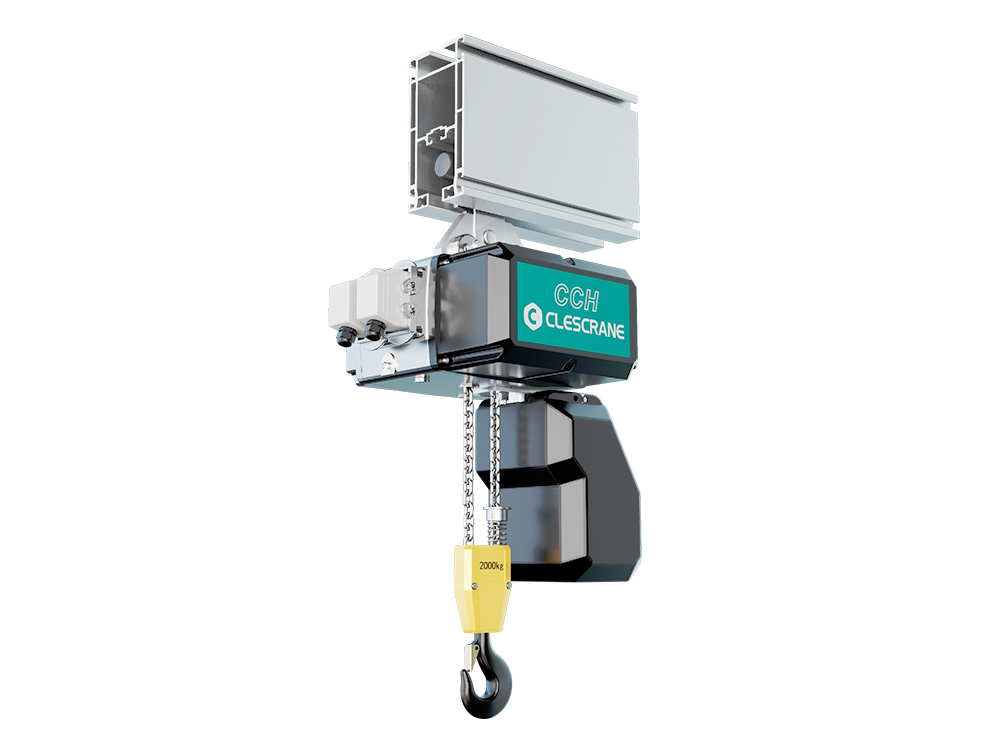

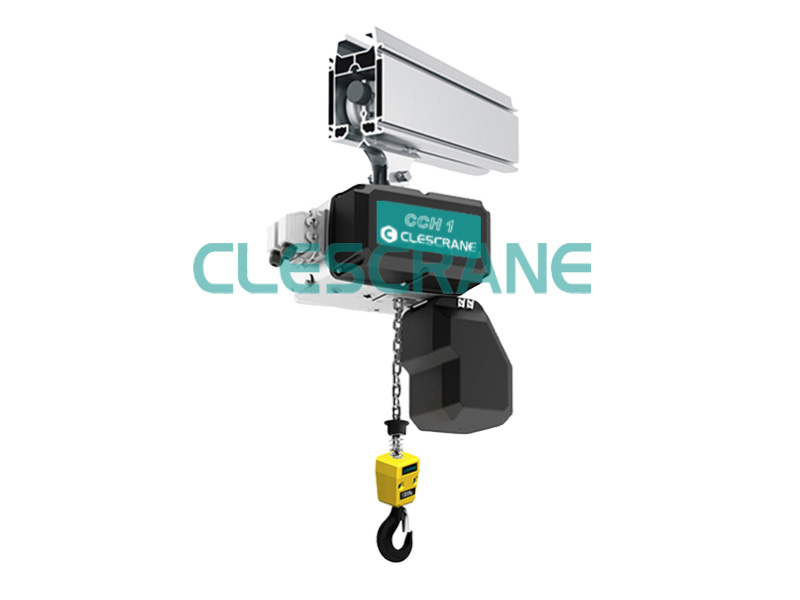

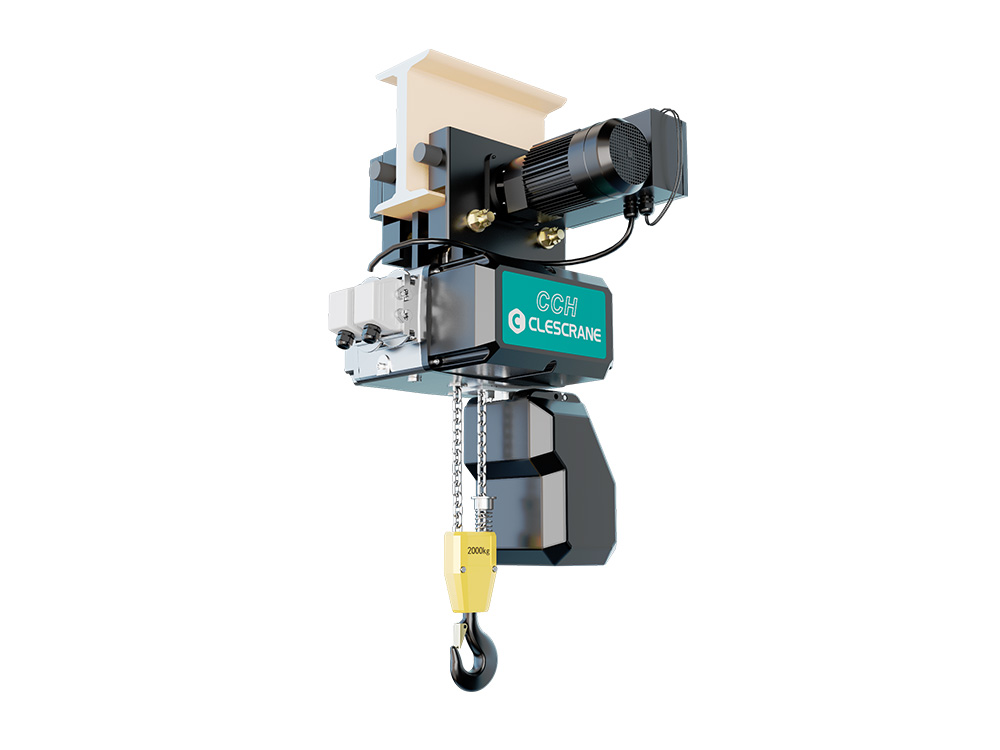

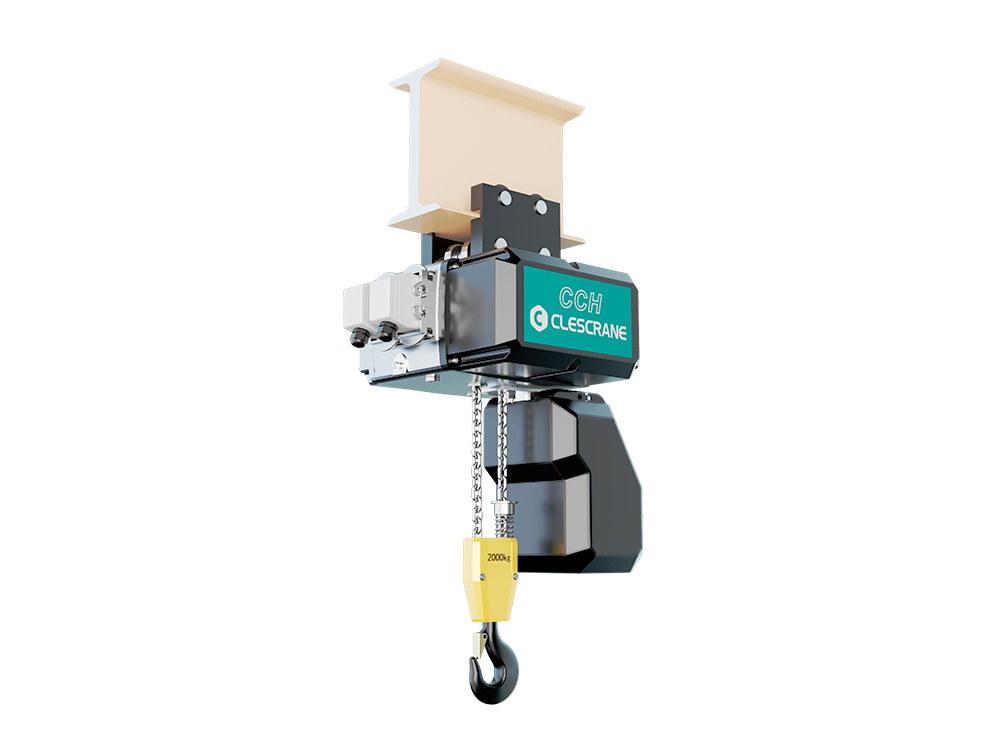

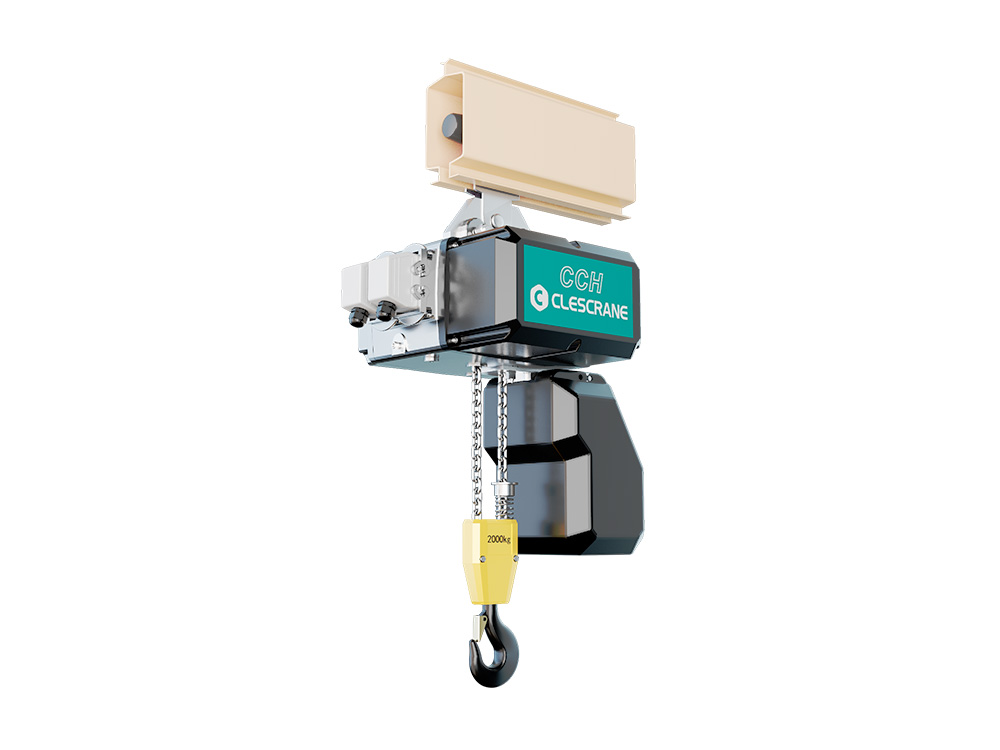

More optional functions can be provided according to your need. CCH series chain hoist has fixed type, manual trolley type and electric trolley type.
You can choose different optional functions according to your real need. We will help you to get the best lifting way.

Overview

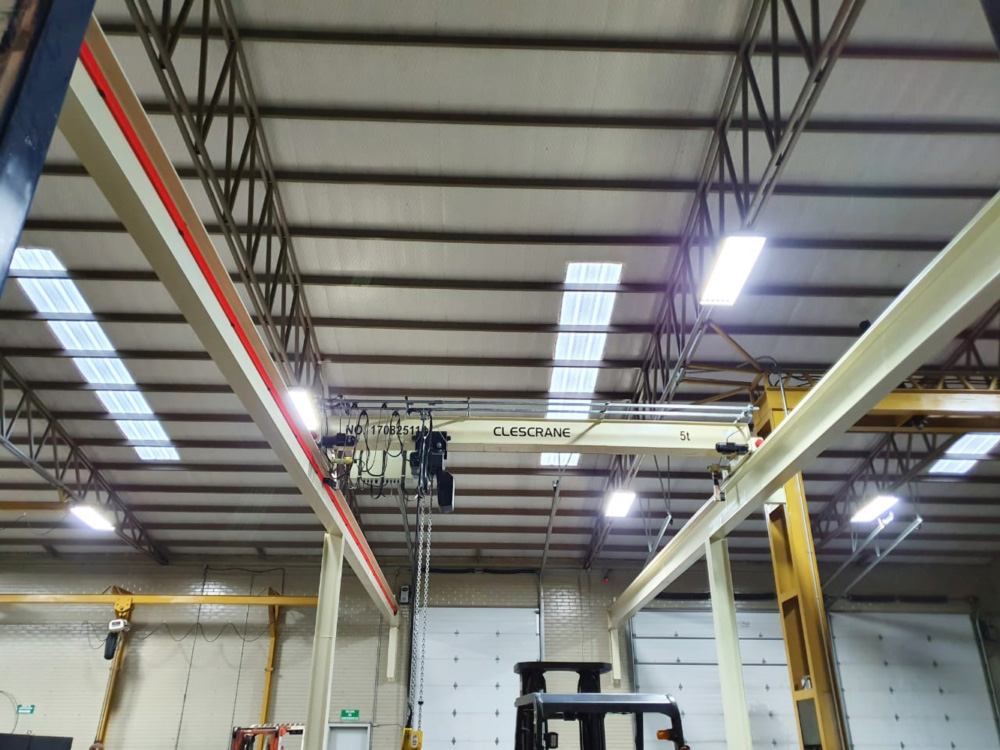

The lifting capacity of Clescrane CCH series electric chain hoist is from 150kg to 10 000kg. The chain hoist has features of compact structure, modular design and free maintenance. The modular design helps us to have a flexible combination to meet customers’ individualized requirements. CCH series chain hoist can be matched with manual or electric trolley, and can be installed on light crane, monorail crane, jib crane and overhead crane. The double speed electric trolley and electric lifting will provide you flexible and high efficiency material handling solution. CCH chain hoist is the best choice for your light and medium lifting need.
More optional functions can be provided according to your need. CCH series chain hoist has fixed type, manual trolley type and electric trolley type.
You can choose different optional functions according to your real need. We will help you to get the best lifting way.

Selection table of CCH series electric chain hoist
Load Capacity
(kg)
Hoist Model F.E.M ISO NO. of Chain Falls Lifting Speed
(m/min)
Lifting Power
(kw)
250 CCH1051 02508 3m M6 1 8/2 0.75/0.18
CCH1051 02512 2m M5 1 12.5/3.1 0.75/0.18
320 CCH1051 03208 2m M5 1 8/2 0.75/0.18
CCH1051 03212 1Am M4 1 12.5/3.1 0.75/0.18
500 CCH1051 05008 1Am M4 1 8/2 0.75/0.18
CCH2071 05008 3m M6 1 8/2 1.9/0.45
CCH2051 05016 2m M5 1 16/4 1.9/0.45
630 CCH1052 06306 1Am M4 2 6.3/1.6 0.75/0.18
CCH2071 06308 2m M5 1 8/2 1.9/0.45
CCH2051 06316 1Am M4 1 16/4 1.9/0.45
1000 CCH1052 10004 1Am M4 2 4/1 0.75/0.18
CCH2071 10008 1Am M4 1 8/2 1.9/0.45
CCH5091 10016 2m M5 1 16/4 3.5/0.88
1600 CCH2072 16004 2m M5 2 4/1 1.9/0.45
CCH5091 16008 2m M5 1 8/2.6 3.5/0.88
2000 CCH2072 20004 1Am M4 2 4/1 1.9/0.45
CCH5111 20006 2m M5 1 6.3/1.6 3.5/0.88
CCH5111 20008 1Am M4 1 8/2 3.5/0.88
2500 CCH5092 25004 2m M5 2 4/1.3 3.5/0.88
CCH5111 25006 1Am M4 1 6.3/1.6 3.5/0.88
3200 CCH5112 32003 2m M5 2 3.2/0.75 3.5/0.88
CCH5092 32004 1Am M4 2 4/1.3 3.5/0.88
4000 CCH5112 40004 1Am M4 2 3.2/0.75 3.5/0.88
CCH5112 40003 2m M5 2 4/1 3.5/0.88
5000 CCH5112 50003 1Am M4 2 3.2/0.75 3.5/0.88
7500 CCH5113 75002 1Am M4 3 2.1/0.5 3.5/0.88

You can contact us  ( [email protected] ) if you have questions or need help along the way.
